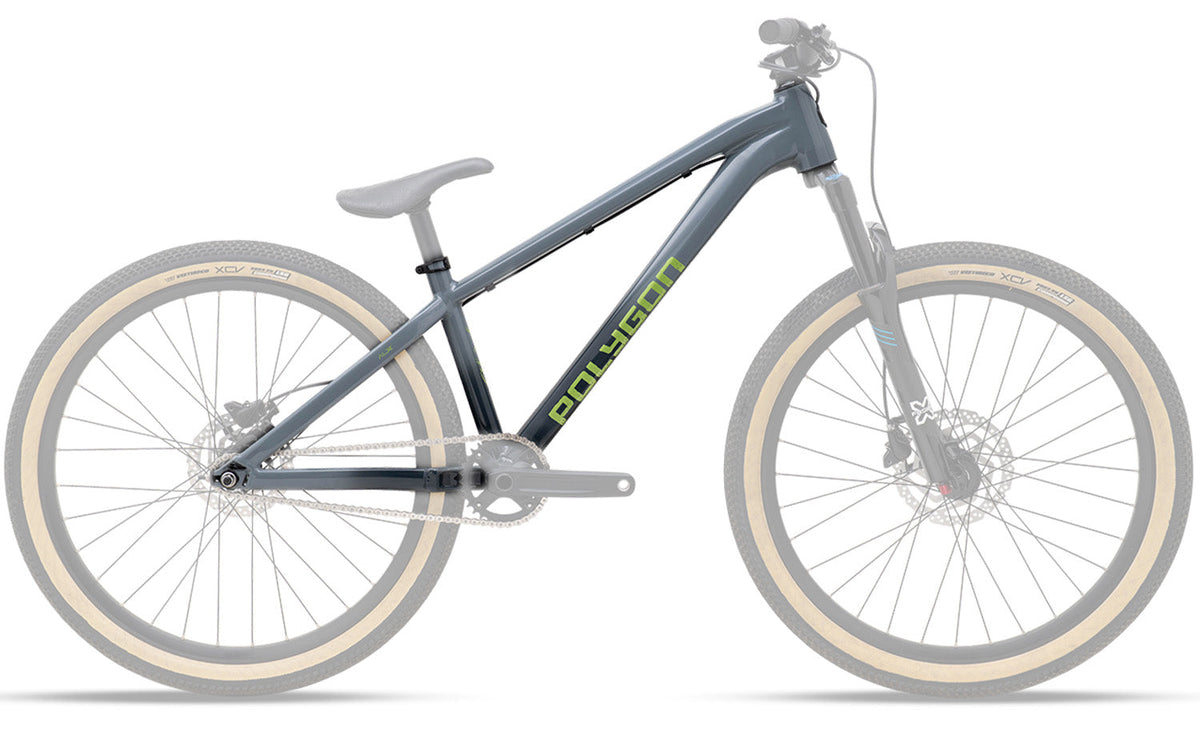

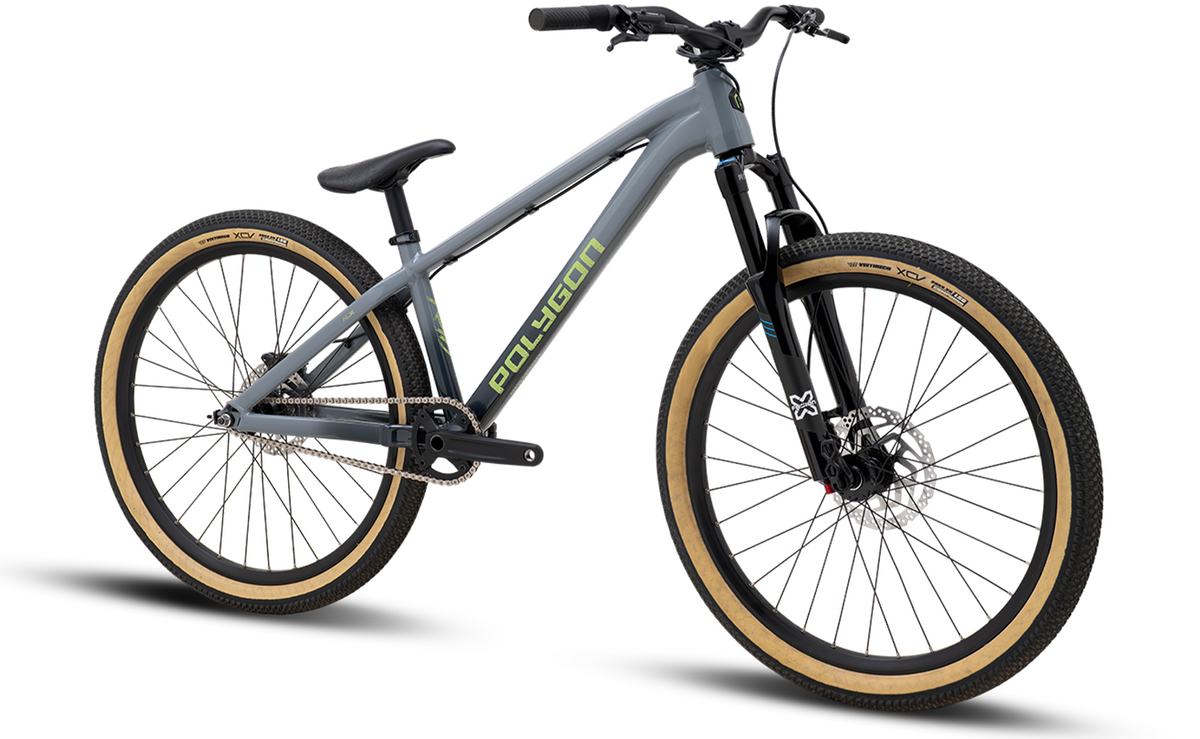

Polygon Trid - Frameset
Ships from the United States. Easy returns within your published return window.
Model Year
2022 – Present
Colour Options
-
Gloss Grey / Green Decals
Description
Developed, tested, and fine-tuned in collaboration with pro slopestyle icon Sam Reynolds, the Polygon Trid Frameset is purpose-built for dirt jumping, pump tracks, skateparks, and street riding. Constructed from ultra-stiff, hydroformed AL6 6061 aluminum alloy, it features ultra-short chainstays for effortless manuals, a low standover height for maneuverability during air tricks, and horizontal rear dropouts with integrated chain tensioners. Engineered around a tapered headtube to handle harsh, high-impact landings, it provides an ultra-durable and flickable base for a custom dirt jump build.
Technical Specifications
-
Frame Material: AL6 Custom Hydroformed Aluminum Alloy
-
Wheel Size Compatibility: 26"
-
Recommended Fork Travel: 100mm (Tapered Steerer, 15x100mm or 20x110mm Axle)
-
Rear Axle Spacing: 10x135mm Horizontal Dropouts (3/8" Track Nut / Bolt-On compatible)
-
Bottom Bracket Standard: 68mm / 73mm Threaded BSA
-
Seatpost Diameter: 30.9mm (Pivotal or standard post compatible)
-
Headset Standard: Tapered Semi-Integrated / Zero Stack (ZS 44/28.6 | ZS 56/40)
-
Brake Mount Standard: IS Mount Disc Brake (Direct 160mm rotor compatibility)
-
Chain Tensioning: Integrated Horizontal Dropout Chain Tensioners
-
Intended Use: Dirt Jump (DJ), Pump Track, Skatepark, and Street Freestyle
